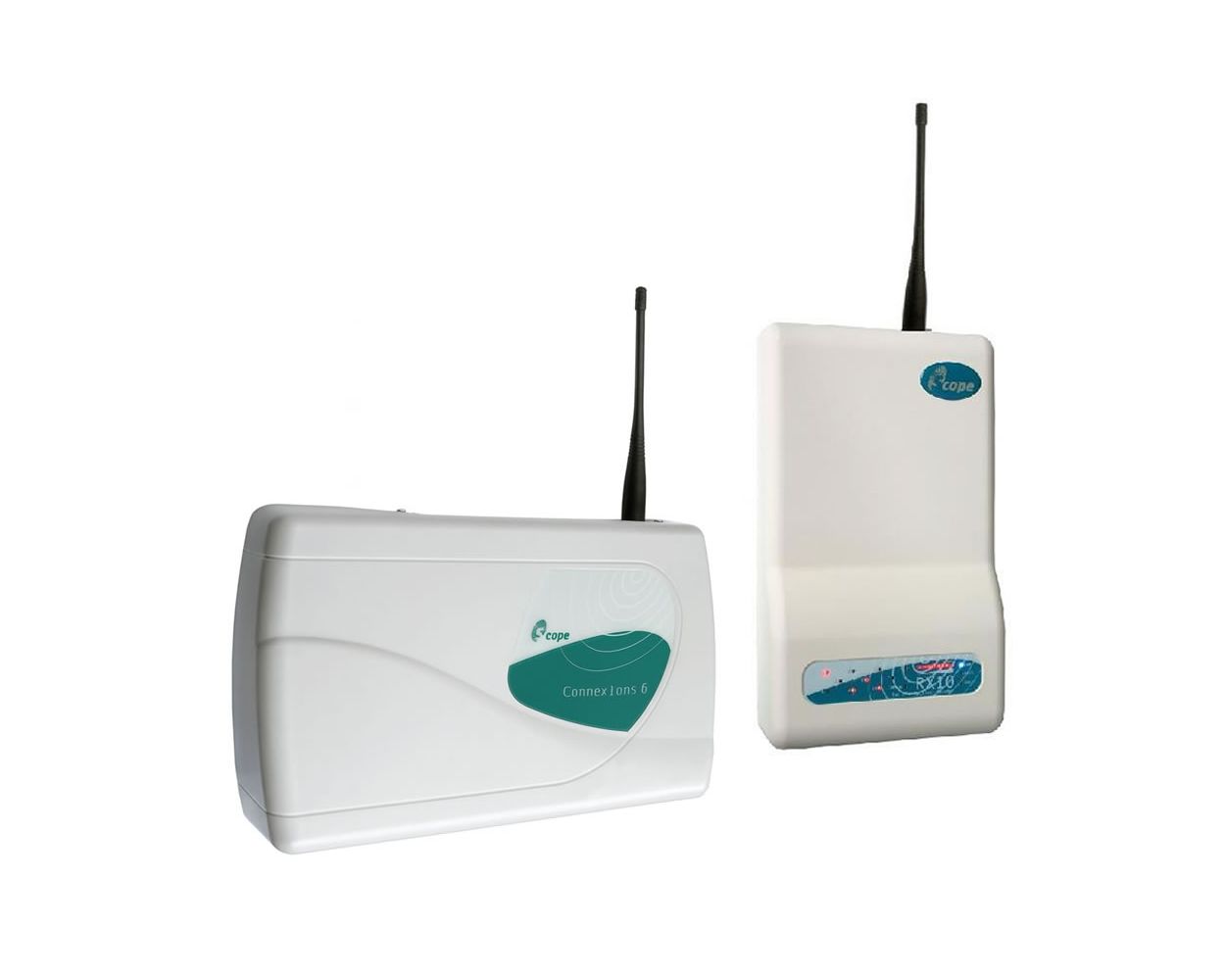

12vdc Connexions repeater

Connections Repeaters are utilised to increase the paging range of a system. Operating on 12vdc, the repeaters are perfect for extensive systems that require a wide paging range, both the REP6PDC and REP5RPDC are supplied preprogrammed.
Features

• Supplied with standard aerials
• Transmitter output: REP6PDC 1W and REP5RPDC 2W (receiver is class 1.5)
• Power supply: REP6PDC 1A and REP5RPDC 2A
• Maximum RF Output Power: REP6PDC 1W and REP5RPDC 2W
• Enables the extension of the transmission range
• Provides a high level of transmission security during emergencies or disasters (especially when battery backup is available)
• Operating at UHF frequencies ensures exceptional reliability for transmissions in commercial settings, utilizing very small and discreet antennas
• The standard model includes two RS232 ports and eight volt-free trigger inputs
• High-quality transmitter modules deliver robust RF performance
• Achievable ranges of up to a mile with the basic antenna provided; additional external antennas and transponders can be incorporated to enhance coverage in challenging locations
• UHF POCSAG signaling format guarantees excellent propagation even in tough environments
